T-Slot vs. V-Slot: Which Aluminum Profile is Right for Your Next Build?.
When starting a custom CNC or 3D printer project, the most important decision you make is your choice of framing. At DIY Automations, we frequently get asked: "Should I use T-Slot or V-Slot aluminum extrusions?"
Both profiles look similar, but they serve different purposes. Here is the breakdown to help you choose the right one for your setup.

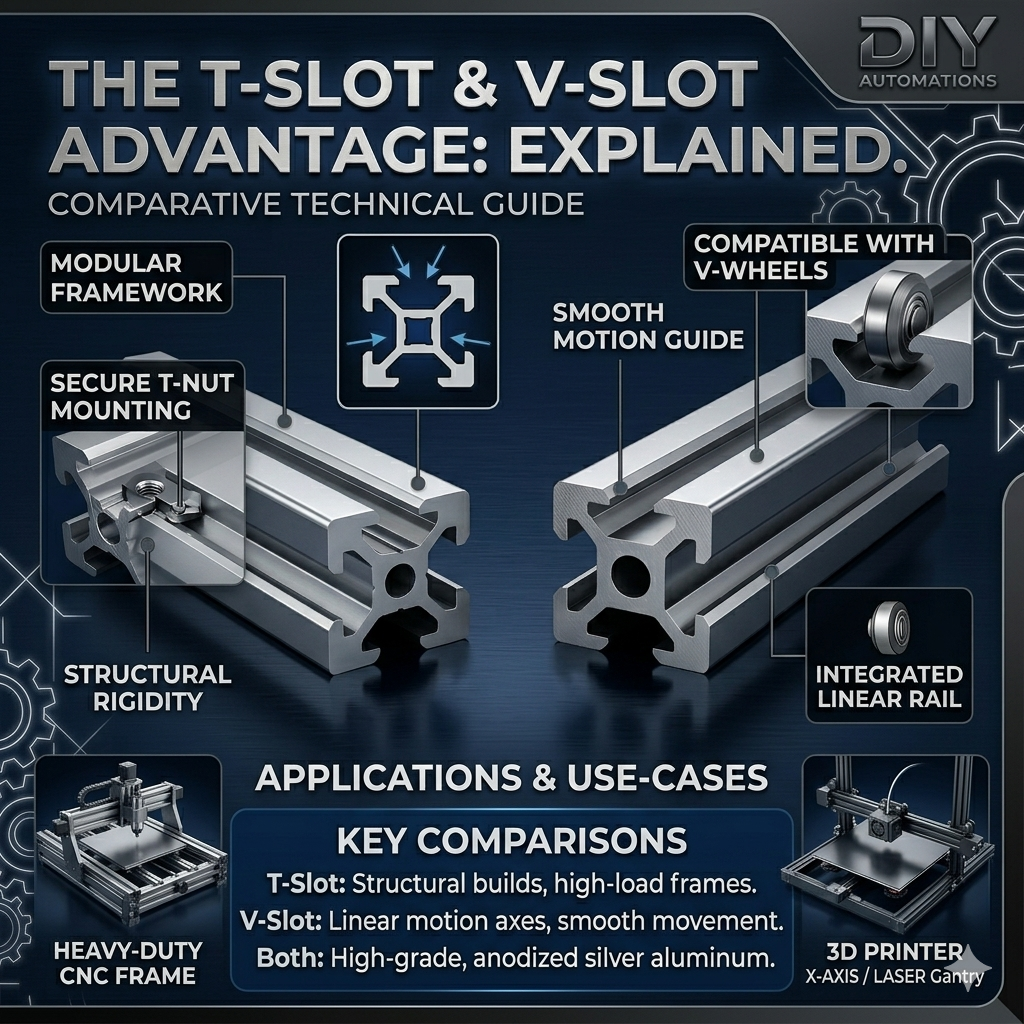

What is T-Slot?
T-Slot profiles are designed primarily for structural strength and modular assembly. They feature a flat-bottomed groove that is perfect for holding T-nuts, allowing you to bolt components together securely.
-
Best for: Machine frames, heavy-duty workbenches, and enclosures where rigidity is the top priority.
-
Why use it: It provides an incredibly stable, vibration-resistant structure for CNC machines that handle significant mechanical stress.
What is V-Slot?
V-Slot takes the standard T-Slot design and adds a beveled "V" edge to the groove. This edge acts as a track for wheels to glide along.
-
Best for: Linear motion systems, such as the X, Y, and Z axes on 3D printers and laser cutters.
-
Why use it: It combines the structural benefits of aluminum extrusion with the functionality of a linear rail, allowing for smooth, precise movement without needing expensive add-on rails.
Quick Selection Guide
-
Need a sturdy frame? Go with T-Slot for the base and exterior structure.
-
Need moving parts? Use V-Slot for the rails where your gantry or extruder carriage will travel.
Start Your Build Today
At DIY Automations, we stock a full range of 2020,2040,2060,2080,20100, 3030,3060 and 4040,4080,40120,10160 series aluminum extrusions to fit any project size. Whether you are building a professional-grade CNC or a custom 3D printer, we have the components you need to get it done right.
Have a question about your specific machine design? Reach out to us on WhatsApp at 03333331937 or 03116169269 for technical advice!
