Linear Shaft Support Series

The Linear Shaft Support Series is designed to provide stable mounting, accurate alignment, and strong support for linear shafts used in motion and automation systems. These supports ensure reduced vibration, improved load handling, and long-term operational stability.

This series includes shaft supports, linear blocks, and bearing housings, making it a complete solution for supported linear motion assemblies.

Key Features

High-strength aluminum alloy construction

Rigid shaft clamping for excellent stability

Maintains precise shaft alignment

Easy installation on flat surfaces or machine frames

Reduces shaft deflection and vibration

Product Types Included

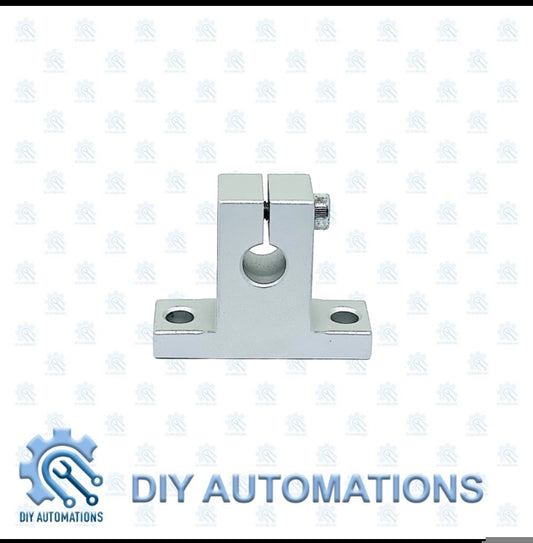

SH Shaft Supports (SH08 – SH35)

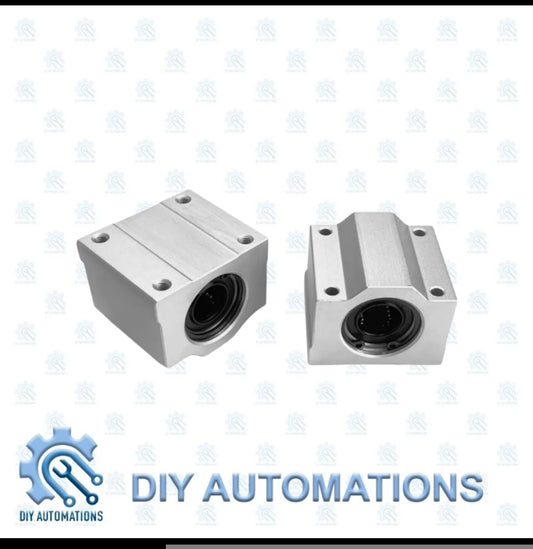

SC Linear Blocks (UU / LUU types)

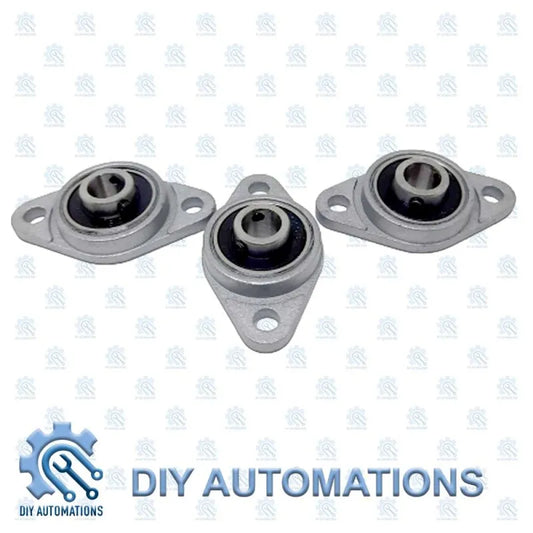

T8 Bearing Supports (KP / KFL types)

Supported Shaft Sizes

Ø8, Ø10, Ø12, Ø13, Ø16, Ø20, Ø25, Ø30, Ø35

Common Applications

CNC machines and routers

3D printers and engraving machines

Automation and robotics systems

Linear tables and gantry structures
