GT2 Belt & Parts | 20T Pulley Series | Pulley (10mm) 20T-5

Pulley(10mm)20T-5
Key Features:
  • Weight: 7.00 g
840.00
48 Packets In Stock
Unit Packet
Qty in a packet 4 Pieces
SKU GT2-20T-002620
Category GT2 Belt & Parts
Series 20T Pulley Series

Description


Pulley (10mm) 20T-5 is a core part of any DIY projects. The pulley contains 20 teeth while the bore is 5mm. This Timing Pulley is suitable for 10mm wide belt for automation transmission. The GT2 20T pulley is designed specifically for linear motion.This GT2 Timing pulley has 20teeth and an 5mm inner bore.Full aluminum construction means these are very light and durable. They use a rounded tooth profile that guarantees that the belt tooth fits smoothly and accurately in the pulley groove.So when you reverse the pulley direction, there is no room for the belt to move in the groove.The GT2 5mm pulley wheel 20teeth or grooves is one of the best choices for 3D printer construction. We have a complete range of several sizes of Timing Pulley specially used for DIY projects and 3D prints assembly. All goods are available in ready stock in Lahore outlet. We believe that the prices are best in the town.

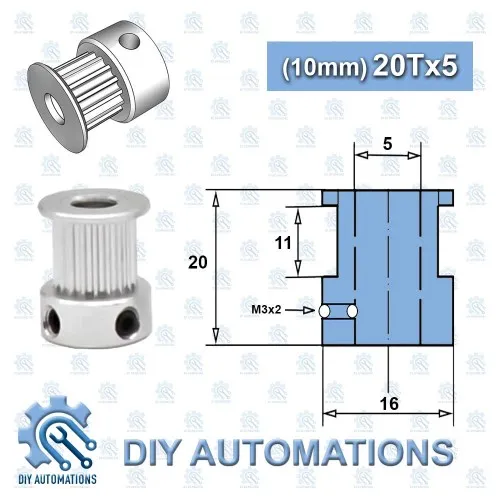

SPECIFICATIONS


Name: GT2 Timing Pulley


Fit to : Timing belt of 10mm Width


Bore of Timing Pulley: 5mm


Outer Dia of Timing Pulley: 16mm


Width of Timing Pulley: 20mm


L key Bolt Size: M3x2


Number of Teeth: 20 teeth


Material: Aluminum


Pulley Type : Single


Pulley Height : 20mm


Color: Silver



Packing:


4 pcs in a pack
